Cut Sheet Diagrams

Is the city (or municipality) asking for a more detailed diagram of your proposed channel letter sign? Or do you simply need to show your client a breakdown of how a letter is constructed? Our cut sheet diagrams will help.

Front Lit
Reverse Lit (Halo)
Front/Back Lit

Front Lit Channel Letters

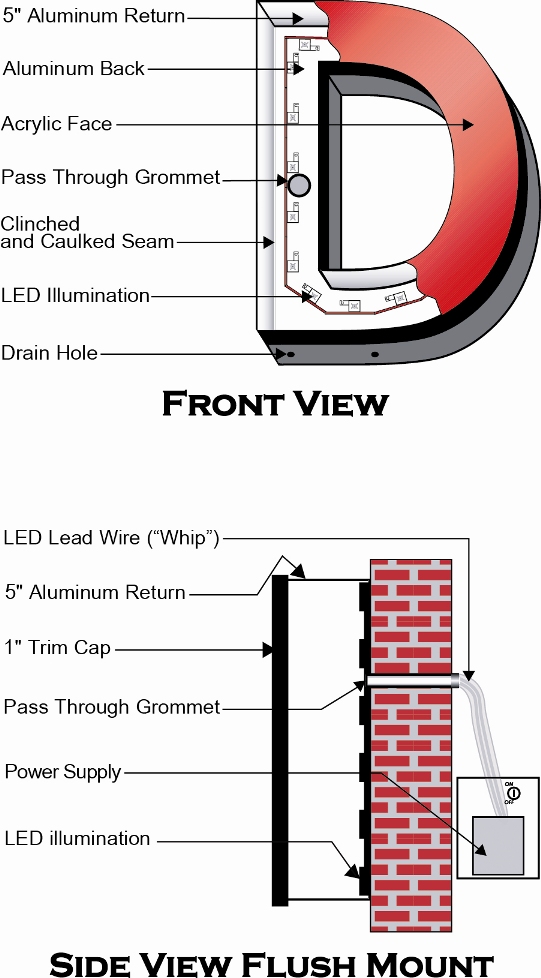

flcl cut sheet
Back to Guides & Diagrams
Download Diagrams

Reverse Channel Letters

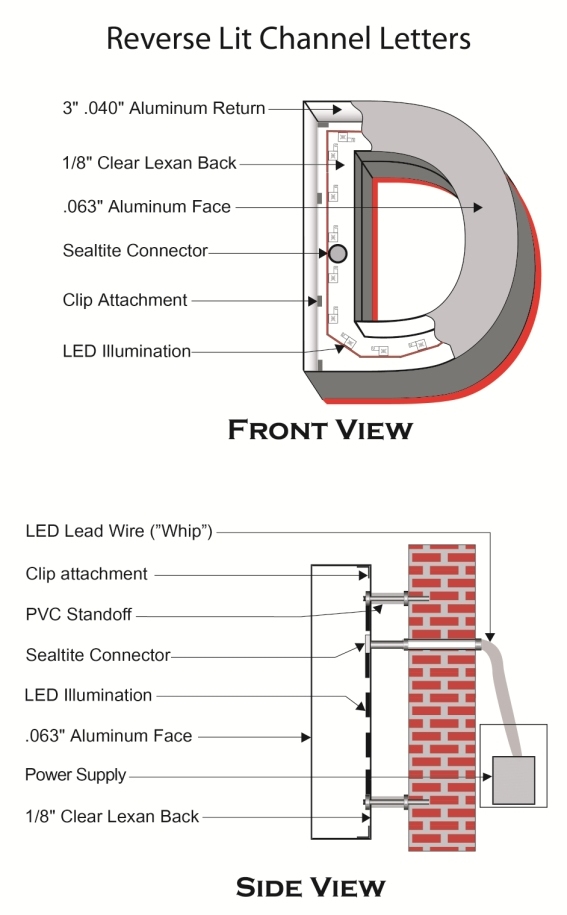

Reverse Cut Sheet
Back to Guides & Diagrams
Download Charts

Front/Back Lit Channel Letters

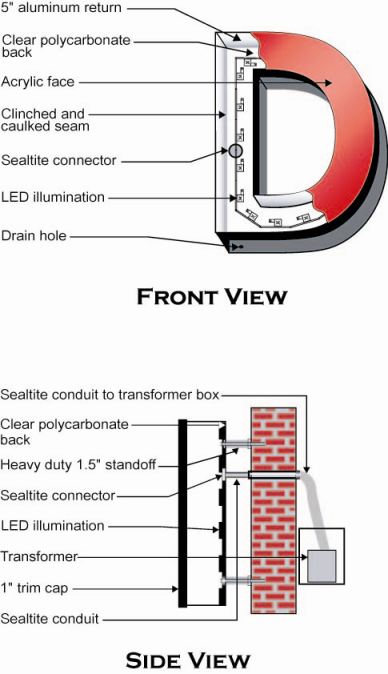

front-back-cut-sheet
Back to Guides & Diagrams
Download Charts
